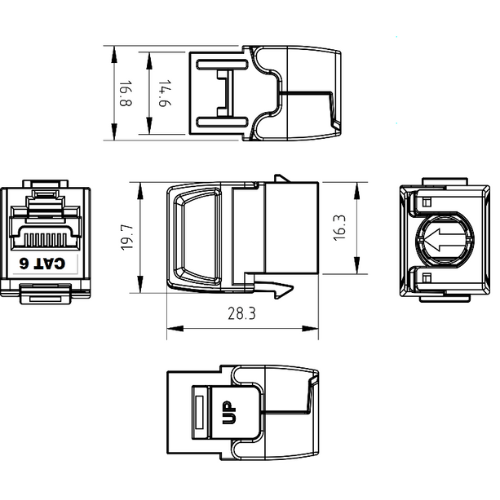

Cat.6 FTP 180° Toolless – Keystone Jack

CAT 6 FTP Shielded Toolless Keystone Jack is designed to

comply with International Class E channel specifications.

Toolless design, no punchdown tool required.

Performs better than CAT 6 component performance

(ANSI/TIA-568-C.2 Category 6).

Category: Keystone Jack Product ID: 8679

Description

CAT 6 FTP Shielded Toolless Keystone Jack is designed to

comply with International Class E channel specifications.

Toolless design, no punchdown tool required.

Performs better than CAT 6 component performance

(ANSI/TIA-568-C.2 Category 6).cat6_sftp_toolless

Features	EMI/RFI protection Zinc-Alloy Housing Front Connection Spring Wire: Phosphor Bronze Alloy. Plated with 50 micro-inch of Gold over 70-100 micro-inch of Nickel IDC Material: Phosphor Bronze Alloy with 10 micro-inch 100% Tin Alloy Can accommodate 22-26AWG wires(Solid or stranded) T568A/B wiring
Applications	Voice Fast Ethernet (IEEE802.3) 100Vg-AnyLAN (IEEE 802.12) Token Ring (IEEE 802.5) TP-PMD (ANSI X3T9.5) 100Base-T Ethernet (IEEE 802.3u) 155/622 Mbps 1.2/ 2.4 Gbps ATM 1000Base-T Ethernet 550 MHz Broadband video
Standards	UL 1863 Safety listed UL 94V-0 flammability ANSI/TIA Standard 568-2.D ISO/IEC 11801 2. Ed. CENELEC EN 50173
Available Colours	1916-12020 – Metallic Grey
